Outdoor decks are increasingly designed as long-lasting structural spaces that support heavy loads, modern composite decking surfaces, and architectural features such as pergolas, hot tubs, or outdoor kitchens. To achieve the strength and durability required for these applications, builders often rely on engineered structural materials rather than traditional dimensional lumber. One of the most important engineered components used in deck framing today is the LVL deck beam. LVL (Laminated Veneer Lumber) beams are widely used in structural deck construction because they provide superior strength, dimensional stability, and predictable performance compared with conventional lumber.
An LVL deck beam is a structural member made from multiple thin layers of wood veneer bonded together under heat and pressure. Each veneer layer is oriented with its grain running in the same direction, creating a beam that distributes loads evenly along its length. Because of this engineered structure, LVL beams are commonly used in deck framing for primary deck beams, flush beams supporting deck joists, structural headers, and long-span support members. LVL beams are especially useful in modern decks that require longer spans and fewer support posts.
Traditional deck beams are often constructed from multiple pieces of pressure-treated lumber. While this method can work well for many applications, LVL engineered wood beams provide greater structural efficiency and consistency.
Engineered LVL beams have several advantages over traditional dimensional lumber when used in deck construction.
LVL beams are designed to carry heavy loads efficiently. Because they are manufactured using layered veneers bonded together, their structural performance is more uniform than natural lumber. LVL beams can handle heavier loads than pressure-treated lumber of the same size, making them suitable for large or elevated decks.
This high strength is particularly beneficial for decks that support:
Large gatherings of people
Outdoor kitchens or heavy furniture
Pergolas or roof structures
Hot tubs or spas
One of the main challenges with traditional lumber is that it can twist, bow, or shrink over time as moisture content changes. LVL beams are manufactured under controlled conditions, which minimizes defects such as knots and internal stresses. This results in beams that remain straight and stable throughout their lifespan.
For deck structures, dimensional stability means flatter framing surfaces, reduced deck board movement and lower risk of structural deformation.
LVL beams allow deck builders to design structures with longer spans between posts, which simplifies construction and creates cleaner architectural lines. For example, engineered LVL beams can span significantly farther than comparable dimensional lumber beams, reducing the need for intermediate columns and increasing usable space below the deck. This is particularly valuable for elevated decks, multi-level outdoor spaces, and decks built above patios or garages.
Because LVL beams are manufactured products, every beam is produced with consistent material properties. This consistency makes structural calculations more reliable and ensures predictable results during construction. Builders benefit from accurate engineering design, simplified installation, and reduced material waste.
The primary beam is the main horizontal support that carries deck joists. LVL beams are often used here because they provide the strength needed to support large loads.
A typical beam layout may include:
LVL beam supported by vertical posts
Joists spanning from the ledger board to the beam
Deck boards installed perpendicular to the joists
A flush beam sits between joists rather than underneath them, creating a cleaner deck profile. Engineered LVL beams are commonly used for flush beams because their high strength allows them to support joists with minimal deflection.
A drop beam sits below the joists and supports them from underneath. LVL beams are frequently used in drop beam designs because they can support large joist spans and distribute loads evenly across support posts.
Some deck designs include cantilevered sections where joists extend beyond the beam. LVL beams provide the structural strength needed to support these designs while maintaining deck stability.
Because decks are exposed to moisture and environmental conditions, the materials used for deck framing must be durable and resistant to decay. Modern treated LVL products are designed for above-ground exterior use, providing resistance to rot, fungal decay, and insect damage.
Some treated LVL beams are manufactured with protective treatment systems that penetrate the veneer layers, ensuring long-lasting durability throughout the entire beam. This treatment allows LVL beams to be used in several deck components, including deck beams, deck joists, stair stringers and ledger boards. In some cases, treated LVL products even include warranties against decay or insect damage for long service life.
| Feature | LVL Deck Beams | Pressure-Treated Lumber |
| Strength consistency | High | Variable |
| Dimensional stability | Excellent | Can twist or warp |
| Span capability | Longer spans | Shorter spans |
| Structural reliability | Engineered and predictable | Depends on natural wood quality |
| Installation | Straight and uniform | Often requires adjustment |
| Long-term durability | High when treated | Moderate |
These advantages make LVL beams increasingly popular for structural deck framing.

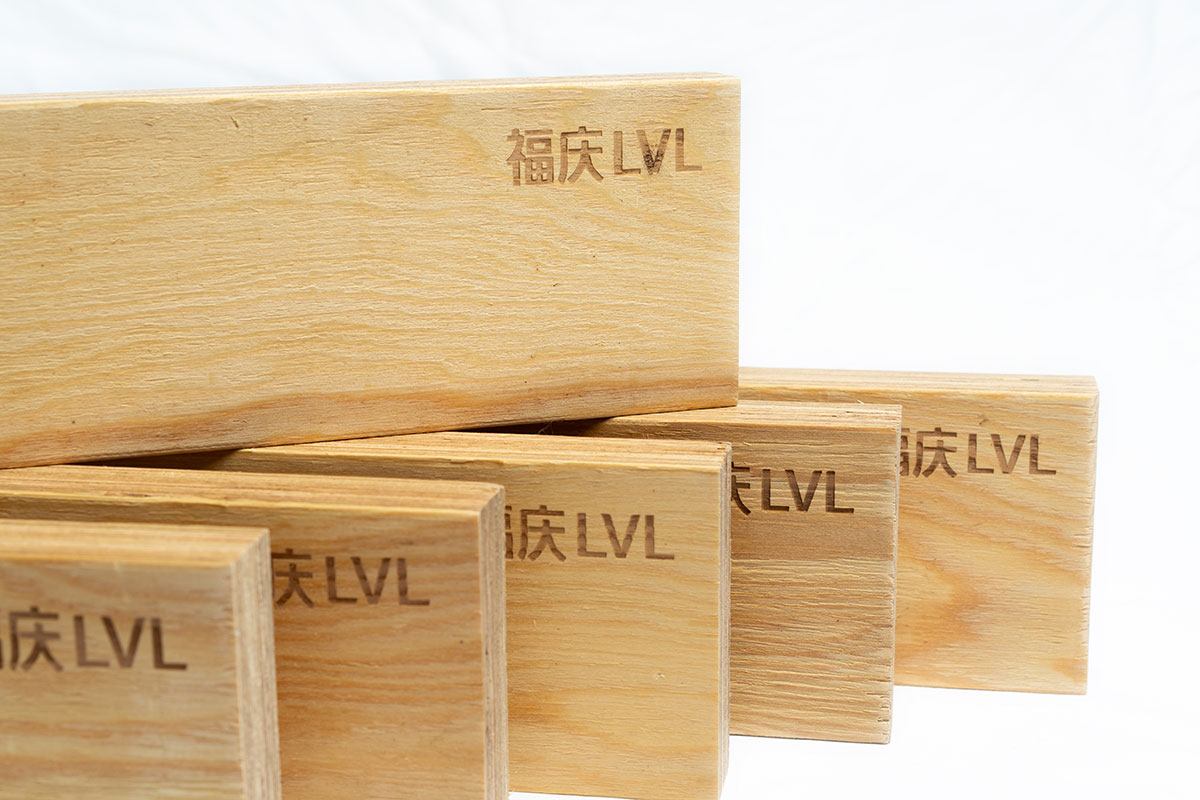

When designing engineered deck framing systems, high-quality structural materials are essential. Fuqing Wood manufactures a range of engineered wood products, including structural LVL beams, that can be used in various construction applications.
Fuqing LVL products are designed with:
High strength-to-weight ratios
Consistent structural performance
Reliable dimensional stability
Engineered manufacturing quality
These properties make Fuqing LVL beams suitable for many structural uses, including:
Deck beams and structural framing
Floor and roof support members
Structural headers and columns
By integrating Fuqing LVL products into deck framing systems, builders can achieve strong and efficient structural designs while benefiting from the consistency and reliability of engineered wood.
Engineered wood products like LVL are also environmentally beneficial. LVL manufacturing uses smaller logs and efficiently utilizes wood fibers, reducing waste compared with traditional lumber production. Other sustainability advantages include renewable wood resources, lower carbon footprint than steel and efficient use of forest materials. These characteristics make LVL an attractive choice for environmentally responsible construction.
Deck framing systems rely heavily on strong and reliable beams to support the structure and distribute loads effectively. LVL deck beams provide an engineered solution that delivers superior strength, stability, and long-span capability compared with traditional lumber.
With benefits such as consistent quality, dimensional stability, and improved structural performance, LVL beams are increasingly used in modern deck construction. When properly treated and installed, they provide long-lasting structural support for residential and commercial decks.
