Garage doors are among the largest openings in residential and light-commercial buildings. Because these openings remove a large section of the load-bearing wall, a structural beam, commonly called a garage door header, is required to carry the weight of the structure above and transfer it to the side supports. Today, LVL (Laminated Veneer Lumber) has become one of the most widely used materials for garage door headers due to its high strength, dimensional stability, and reliable performance.
A garage door header is a structural beam installed above the garage door opening. Its purpose is to support the loads from the roof, floor systems, and wall framing above the opening and transfer those loads to the side studs or columns. LVL headers are made from thin wood veneers laminated together with strong adhesives, forming a highly engineered beam with predictable structural properties. [1]
Because of the way LVL is manufactured, it provides consistent strength across the entire beam. Unlike traditional dimensional lumber, which may contain knots or irregular grain patterns, LVL beams are engineered to eliminate many natural defects.
LVL beams are commonly used for:
Window headers
Door headers
Garage door headers
Floor beams
Roof beams and rafters
This versatility makes LVL a preferred material for modern wood-frame construction.
Garage door openings are often large, commonly between 8 and 18 feet wide, which places significant structural demand on the header beam. LVL offers several advantages that make it ideal for this application.
LVL beams are engineered to support heavy structural loads. Because the wood veneers are layered and bonded together, the resulting beam has excellent bending strength and stiffness. This allows LVL headers to span large openings while maintaining structural integrity.
One major benefit of LVL is its consistent mechanical properties. The manufacturing process removes many of the weaknesses found in natural wood such as knots, splits, or irregular grain. This consistency helps engineers design headers with predictable load capacity.
Traditional lumber headers can shrink, twist, or warp over time as moisture levels change. LVL beams are far more stable and resistant to these issues. Engineered LVL beams are designed to resist warping, splitting, and shrinkage, ensuring long-term structural stability.
LVL headers can often be built up from multiple plies on site, making them easier to transport and install compared with large solid beams. They also produce less waste during construction.
The correct size of a garage door header depends on several factors:
Width of the door opening
Roof load or floor load above
Number of stories above the garage
Local building codes
Snow and wind loads
In many residential applications, the following LVL header depths are commonly used:
| Garage Door Width | Typical LVL Header Size |
| 8–10 ft | 7 ¼" – 9 ¼" LVL |
| 12 ft | 9 ½" LVL |
| 14 ft | 11 ⅞" LVL |
| 16 ft | 11 ⅞" – 14" LVL |
| 18 ft+ | 14" – 16" LVL |
These values are general guidelines, and exact sizing should always be determined by structural calculations and building codes. [2] For very large openings or heavy loads, multiple LVL plies may be used to increase strength.
When designing a garage door header using LVL beams, several structural factors must be considered.
The header beam carries loads from above and transfers them to jack studs or structural columns located at each side of the opening.
These supports must be strong enough to handle the vertical loads.
A minimum bearing length is typically required for the LVL beam to sit securely on the supporting studs. Most building codes require at least 1.5 inches of bearing on each side.
For larger openings, multiple LVL beams may be fastened together to create a stronger header. For example, double LVL beam, triple LVL beam. This built-up design increases load capacity while allowing easier installation.
Garage headers are typically integrated into the wall framing system with king studs, jack studs and cripple studs above the header. Proper installation ensures that loads are distributed evenly through the wall structure.
While LVL headers are the most common use in garage framing, LVL products can also serve other structural functions.
These include:
Garage roof beams
Floor support beams above garages
Structural columns for wide openings
Wall framing reinforcement
For example, LVL columns can be used at the sides of large garage openings to support heavy loads and ensure structural stability. These structural members can work together with LVL headers to create a reliable framing system.
Fuqing Wood manufactures LVL columns designed for structural applications, providing strong vertical support in wood-frame buildings.
For builders and distributors seeking high-quality engineered wood materials, Fuqing Wood offers a wide range of LVL products suitable for structural construction. Fuqing produces engineered LVL materials used in door cores, structural columns, beams and framing components.

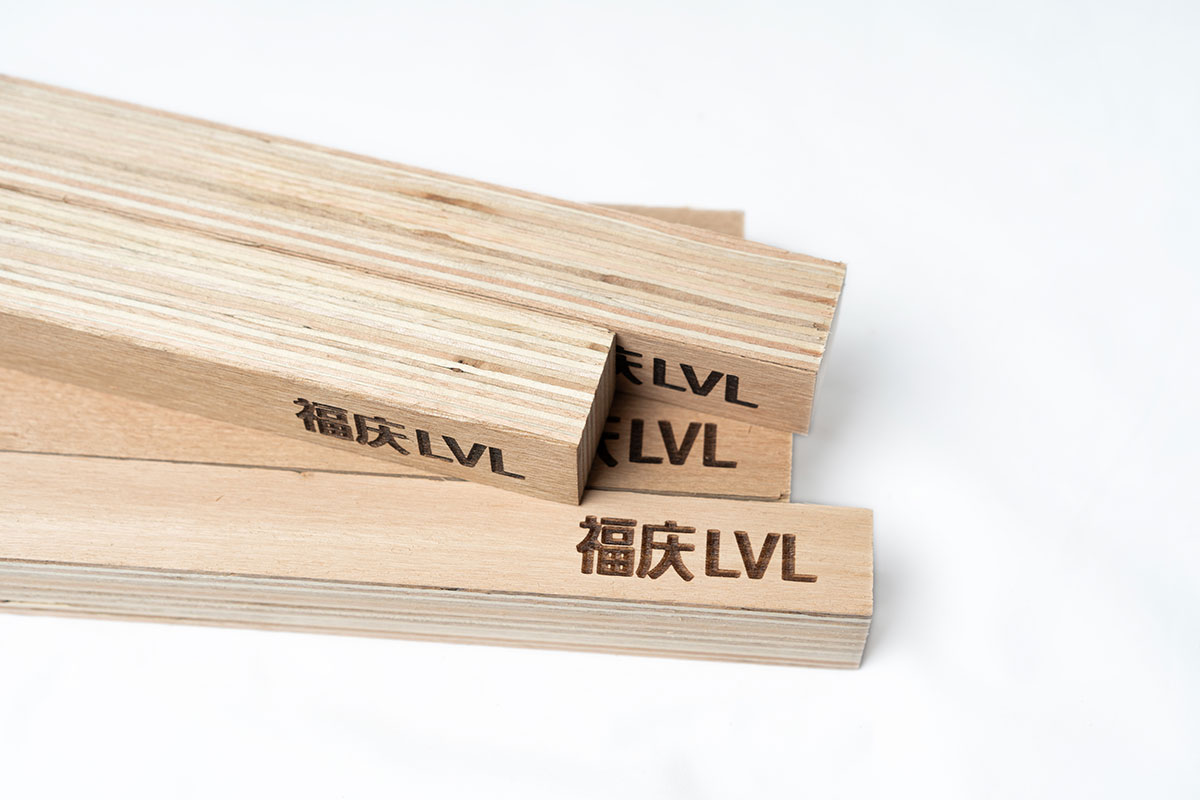

Fuqing LVL door core products are designed for high structural stability and dimensional accuracy, making them ideal for door manufacturing and framing applications.
LVL door cores provide:
High density and strength
Resistance to deformation
Stable internal structure
Smooth surface for finishing
Although primarily used for door manufacturing, LVL panels and engineered veneers demonstrate the structural reliability of laminated veneer lumber products.
For structural framing around large openings such as garages, Fuqing LVL columns provide strong vertical support.
These columns offer:
Excellent load-bearing capacity
Consistent strength properties
High dimensional stability
Reliable structural performance
Together with LVL beams or headers, these products can form a strong structural framework for residential and commercial buildings.
Choosing LVL products from experienced manufacturers offers several benefits for construction projects.
Quality Control: Professional manufacturers use advanced equipment and strict quality inspection to ensure consistent structural performance.
Material Optimization: Engineered wood products maximize the use of natural wood resources while improving structural properties.
Custom Sizes and Specifications: Manufacturers can produce LVL beams and components in various sizes to meet project requirements.
Global Supply Capability: Companies with export experience can provide reliable supply for international construction markets.
Manufacturers like Fuqing Wood Industry specialize in engineered wood solutions designed for modern construction systems.
Garage door openings require strong structural support, and LVL headers have become one of the most reliable solutions in modern construction. Their engineered structure provides superior strength, dimensional stability, and predictable load performance compared with traditional lumber.
LVL garage door headers offer:
High load-bearing capacity
Consistent structural quality
Resistance to warping and shrinkage
Efficient installation for large openings
In addition to headers, LVL products can also be used for structural columns and door components within building systems.
Manufacturers provide engineered LVL products that demonstrate the strength and reliability of laminated veneer lumber materials for structural and architectural applications. By choosing high-quality engineered wood materials, builders can create safer, stronger, and more durable garage structures.
Reference:
[1] https://www.techsupport.weyerhaeuser.com/hc/en-us/articles/204926710-Microllam-LVL
[2] https://civilsir.com/what-size-header-do-i-need-for-a-8-9-10-12-14-16-18-foot-garage-door/
